Through hull fittings

Hull penetrations: a technical reference for vessel owners

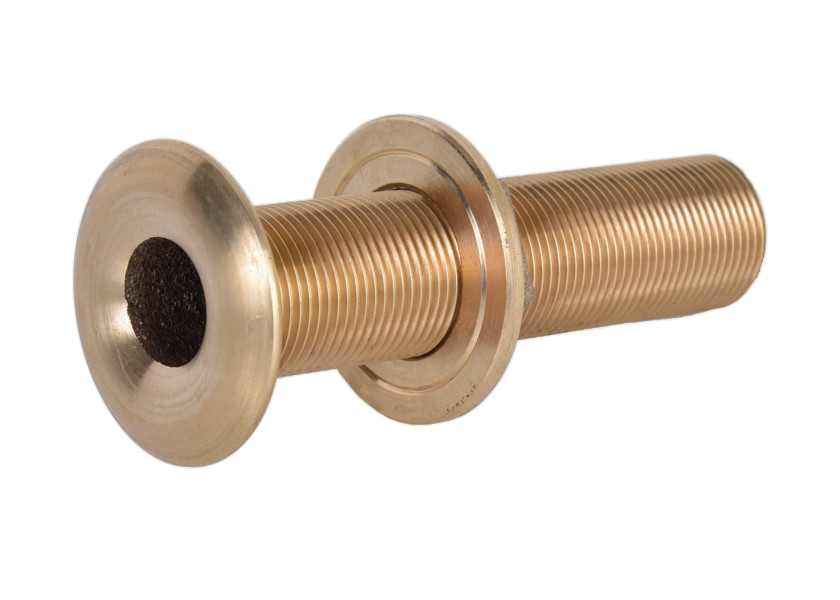

Bronze through-hull skin fitting showing flanged spigot with threaded male end

A through hull fitting is any assembly that creates a controlled, watertight penetration through the hull shell below the waterline. Each penetration is a potential point of failure — and unlike most other systems on a vessel, failure is immediate and potentially catastrophic. Rigorous specification, correct material selection, and documented lifecycle management are not optional for any fitting below the heeled waterline.

Assembly structure

A complete through hull assembly comprises four functional groups:

  • Through hull skin fitting

    The hull penetration itself, consisting of the skin fitting, backing plate, backing nut, and sealant / bedding compound.

  • Seacock

    The isolation valve assembly mounted inboard of the skin fitting, comprising the seacock body, ball valve, lever handle, valve seats, stem packing, and gland / packing nut.

  • Tail pipe / hose adaptor

    The inboard outlet connection from the seacock to the vessel's pipework, comprising the hose barb or threaded nipple secured with double hose clips.

  • Bonding and corrosion protection

    The galvanic protection system, comprising the sacrificial anode, bonding lug, and bonding wire connecting the assembly to the vessel's bonding bus.


Through hull skin fitting

The skin fitting

The skin fitting is a single-piece flanged casting — the flange and spigot body are one unit. The flange bears against the outer hull surface; the spigot passes through the hull; the male thread protrudes inboard to accept the seacock body.

Key dimensions tracked per fitting:

Property Description
Hull fitting materialConstruction material — typically silicon bronze, naval bronze, or Marelon composite
Bore diameterInternal waterway diameter — determines flow capacity and must match the connected system
Spigot diameterOuter diameter of the spigot tube
Tube wall thicknessWall thickness of the spigot
Flange diameterOuter diameter of the flange face bearing against the hull
Flange thicknessThickness of the flange
Hull fitting lengthOverall length of the fitting through the hull
Thread standardBSP, M (ISO metric), UNC, or UNF
Nominal diameterReference diameter of the male thread
Thread pitchDistance between thread crests (mm)
TPIThreads per inch for imperial thread standards
Thread lengthLength of the threaded inboard section
Thread handRight-hand (standard) or left-hand
Surface finishBare, chrome plated, or equivalent

Material selection is the most consequential specification decision. Silicon bronze and naval bronze are the established standard for below-waterline applications — corrosion-resistant, strong, and proven over decades of service. Marelon (glass-filled nylon composite) is fully immune to galvanic corrosion and electrolysis, making it the preferred choice where mixed-metal risk is a concern. Stainless steel is not recommended below the waterline due to susceptibility to crevice corrosion in low-oxygen environments such as beneath sealant beds and in thread roots.

Dezincification is the primary failure mode in bronze fittings — zinc leaches from the alloy leaving a weak copper structure that retains its appearance while losing structural integrity. Any pinkish discolouration on a bronze fitting is a mandatory replacement indicator.

Backing plate

The backing plate is bonded or fastened against the inner hull face, distributing the clamping load of the backing nut across a wider area to prevent localised hull distortion or delamination.

Property Description
MaterialGRP, marine ply, aluminium, or carbon fibre matched to hull construction
Length / WidthPlan dimensions of the plate
Material thicknessLoad-bearing thickness
Bore diameterMust match or clear the skin fitting spigot diameter
Surface finishCompatible with hull laminate and bedding compound

Backing nut

The backing nut threads onto the male spigot of the skin fitting from the inboard side, clamping the fitting assembly against the hull. It is a structurally critical component — the correct across-flats dimension must be verified before installation to ensure proper tooling engagement and torque.

Property Description
MaterialMust match skin fitting material to avoid galvanic coupling
Thread standardMust match skin fitting thread specification exactly
Nominal diameterMust match skin fitting
Thread pitch / TPIMust match skin fitting
Thread handMust match skin fitting
Across flats (AF)Distance across opposing flats — determines correct spanner size
Nut height / thicknessBearing face depth — determines thread engagement length

Sealant / bedding compound

The sealant beds the flange to the outer hull surface, creating a watertight seal at the hull penetration. It is a life-safety component — incorrect product selection or degraded sealant is a direct cause of hull ingress.

Property Description
Base compoundPolysulphide, polyurethane, MS polymer, silicone, or epoxy
Sealant colourFor identification and inspection purposes
UV resistantRelevant for fittings at or near the waterline
Service lifeMaximum in-service duration before scheduled replacement
Min / max operating temperatureService temperature range
Min / max application temperatureAmbient temperature limits for correct cure
Skin timeTime to surface cure at specified temperature and relative humidity

Polysulphide remains the most widely specified compound for below-waterline hull penetrations — it remains flexible throughout its service life, is compatible with GRP and timber, and is removable for future maintenance. Polyurethane (e.g. 3M 5200) provides a stronger bond but is significantly harder to remove. Standard household silicone is not suitable for any below-waterline application.

Sealant condition should be recorded at each haulout inspection. Cracked, hardened, or separated sealant requires immediate renewal — a compromised sealant bed is a slow ingress risk that can cause progressive structural damage before manifesting as a visible leak.


Seacock

The seacock is the isolation valve — the critical safety device that allows any below-waterline penetration to be closed in an emergency. ABYC standard H-27 requires a proper seacock, not a simple threaded ball valve, for any opening below the vessel's maximum heeled waterline. A seacock is a flanged, full-bore valve designed to withstand accidental impact without failure; a threaded ball valve is not.

Seacock body

The seacock body houses the ball valve mechanism and threads onto the male spigot of the skin fitting inboard of the backing nut. Material must be compatible with the skin fitting — mismatched metals in a salt water environment will accelerate galvanic corrosion of the less noble metal.

Ball valve

The ball valve is a ported ball providing a full-bore waterway in the open position and a fully closed position with a quarter-turn of the lever. Full-bore construction is important — a reduced-bore valve creates back-pressure that reduces flow capacity for cooling water intakes and bilge pump discharges.

Lever handle

The lever handle indicates open and closed orientation visually — a lever parallel to the pipeline is open, perpendicular is closed. Some designs allow the handle to be removed as a security measure. All seacock handles should be exercised (fully opened and closed) at minimum monthly intervals to prevent seizure from corrosion or marine growth. A seized seacock that cannot be closed in an emergency is as dangerous as no seacock.

Gland / packing nut and stem packing

The gland nut compresses stem packing material (PTFE or graphite) around the valve spindle where it exits the body, preventing leakage along the stem. Stem packing is a wear component requiring periodic inspection and replacement.

Valve seats

PTFE or elastomer seats bear against the ball in the closed position, providing the watertight seal. Seat condition should be assessed during any seacock service — worn or deformed seats result in a valve that weeps in the closed position.


Tail pipe / hose adaptor

The tail pipe is the inboard outlet connection from the seacock to the vessel's hose or pipework. It may be barbed, threaded, or flanged depending on the system served.

All below-waterline hose connections require double hose clips (two stainless steel clips per connection) as a minimum standard. Single-clipped connections are not acceptable below the waterline. Hose clips should be inspected for corrosion and correct torque at each haulout.


Bonding and corrosion protection

Sacrificial anode

A zinc, aluminium, or magnesium anode mounted at or adjacent to the fitting provides cathodic protection, preferentially corroding in place of the fitting material. Anode material selection depends on the operating environment — zinc for salt water, aluminium for salt and brackish water, magnesium for fresh water. Anode condition should be assessed at each haulout; anodes depleted beyond 50% of original mass should be replaced.

Bonding lug and bonding wire

The bonding lug is a terminal on the seacock body accepting the bonding wire. The bonding wire is a tinned copper conductor running from the lug to the vessel's common bonding bus, equalising electrical potential across underwater metal components and reducing galvanic corrosion risk between dissimilar metals.

The integrity of the bonding connection should be verified with a continuity test at each annual inspection.


Lifecycle management

The following lifecycle events should be recorded against each through hull assembly:

Event Component
Purchase dateAll components
Installation dateAll components
Commissioning dateSkin fitting, seacock
Last inspection dateAll components
Next inspection dateAll components
Last replacement dateSealant, stem packing, anode, hose clips
Next replacement dateSealant, stem packing, anode, hose clips
Sealant expiry / storage lifeSealant / bedding compound
Decommissioning dateAll components
Disposal dateAll components

Marine surveyors consistently identify through hull fittings as among the highest-priority inspection items on any vessel. A complete maintenance record — including material specifications, installation dates, sealant product and batch, and inspection history — is essential both for safety management and for survey compliance.

Data points

Status Values

Value Type
Service events
Last Inspection date
Date of the most recent inspection performed.
Lifecycle
Other
Service Date
Date when an item is planned to be serviced or maintained, or was serviced.
Lifecycle

Property Values

Value Type
Construction
Part No.
Part Number.
Attribute
Hull fitting material
The material from which the hull fitting body is manufactured, typically a corrosion-resistant alloy or composite suited to continuous immersion in sea water.
Attribute
Surface Finish
Surface treatment or finish type.
Attribute
Dimensions
Flange diameter
The outer diameter of the flange face that bears against the hull or other surface.
Measure
Flange thickness
Thickness of flange.
Measure
Hull fitting length
The overall length of the fitting on or passing through the hull.
Measure
Bore diameter
Internal diameter of the fitting — critical for flow calculations of water, air or other gases and fluids.
Measure
Tube wall thickness
Wall thickness of a tube or spigot.
Measure
Spigot diameter
Overall diameter of the spigot.
Measure
Thread Specifications
Thread hand
The direction of the thread helix, determining whether the fastener tightens with a clockwise (right-hand) or anti-clockwise (left-hand) rotation. Right-hand is the universal default; left-hand threads are only used in specific applications where rotational forces would otherwise cause the fastener to self-loosen.
Attribute
Thread Standard
The specification system defining the thread form, profile angle, and unit convention — for example M (ISO metric), UNC (unified coarse imperial), or BSP (pipe threads).
Attribute
Thread length
Length of threaded portion of item.
Measure
Nominal diameter
Stated reference diameter of a thread, representing the outer diameter of the male thread. Used to identify and match threaded components but does not necessarily reflect the precise measured dimension.
Measure
Thread pitch
Distance between adjacent thread crests, measured parallel to the thread axis. Determines how far the fastener advances with each full rotation.
Measure
Threads per inch (TPI)
The number of complete thread crests occurring within one inch of thread length, used to express thread pitch in imperial fastener standards.
Measure
Lifecycle events
Purchase date
Date item was purchased.
Lifecycle
Installation date
Date the item was installed. Note this may be a different date to the commissioning date.
Lifecycle
Commissioning date
Date item was put into commission.
Lifecycle
Decommissioning date
Date item was decommissioned.
Lifecycle
Disposal Date
Date when the item was permanently removed or decommissioned.
Lifecycle
